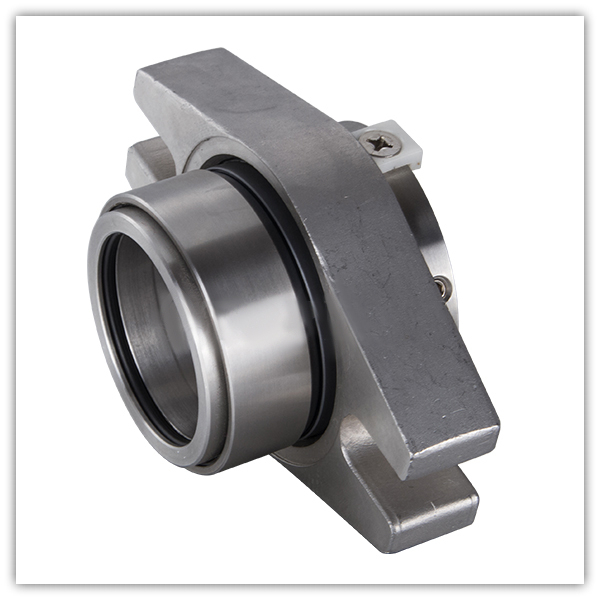

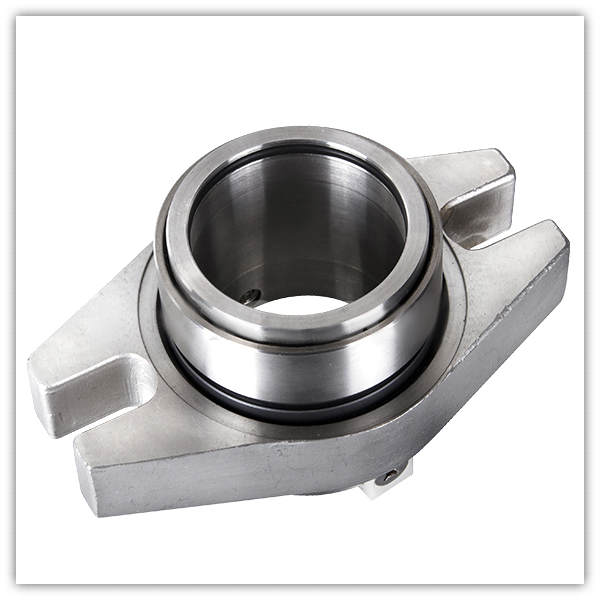

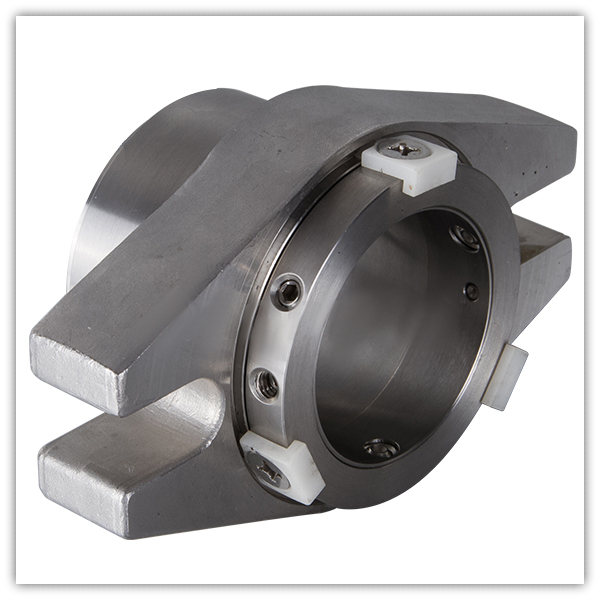

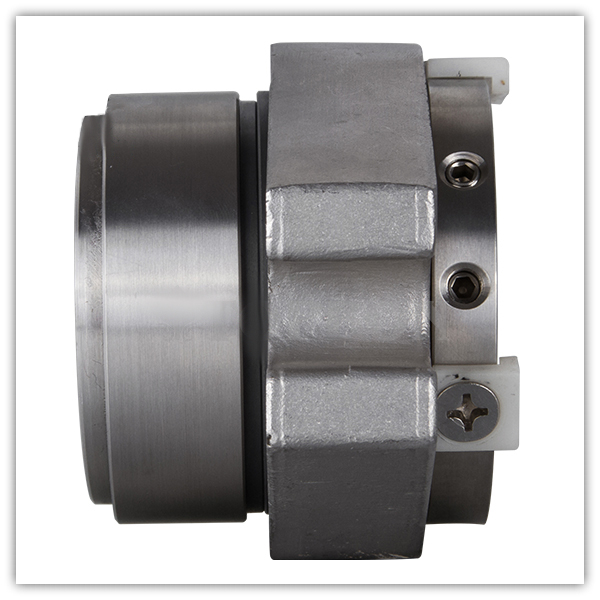

ZLSEALS is a ZL GU 2 Mechanical Seals manufacturer and supplier in China. With rich experience R&D team in this filed, we could offer the best professional solution for clients with competitive price from home and abroad. We are a customize Mechanical Seals factory in China according to clients request.
| d(mm) | D5 | D7 | D9 | L3 | D4 | W | L1 | L2 | ||
| 分 | 最大 | 分 | 最大 | |||||||
| 24 | 101.6 | 55.6 | 20.7 | 56.1 | 40 | 48 | 69.9 | 88.9 | 28.6 | 31.8 |
| 25 | 101.6 | 55.6 | 20.7 | 56.1 | 41 | 48 | 69.9 | 88.9 | 28.6 | 31.8 |
| 28 | 104.8 | 58.8 | 20.7 | 59.3 | 44 | 50 | 73.1 | 92.1 | 28.6 | 31.8 |
| 30 | 108 | 61.9 | 20.7 | 62.4 | 46 | 54 | 762 | 95.3 | 28.6 | 31.8 |
| 32 | 108 | 61.9 | 20.7 | 62.4 | 48 | 54 | 76.2 | 95.3 | 28.6 | 31.8 |
| 33 | 108 | 61.9 | 20.7 | 62.4 | 49 | 55 | 762 | 95.3 | 28.6 | 31.8 |
| 35 | 108 | 66.7 | 20.7 | 67.2 | 51 | 59 | 81 | 95.3 | 28.6 | 31.8 |
| 38 | 114.3 | 71.5 | 22.3 | 72 | 572 | 62 | 85.8 | 101.6 | 28.6 | 33.4 |
| 40 | 114.3 | 71.5 | 22.3 | 72 | 58 | 64 | 85.8 | 101.6 | 28.6 | 33.4 |
| 43 | 120.7 | 74.6 | 22.3 | 75.1 | 61 | 67 | 88.9 | 108 | 28.6 | 33.4 |
| 45 | 127 | 77.8 | 23.8 | 78.3 | 63.5 | 69 | 92.1 | 114.3 | 30.2 | 35 |
| 48 | 133.4 | 81 | 23.8 | 81.5 | 66.7 | 72 | 95.3 | 120.7 | 30.2 | 35 |
| 50 | 133.4 | 81 | 23.8 | 81.5 | 68 | 74 | 95.3 | 120.7 | 30.2 | 35 |
| 53 | 139.7 | 84.2 | 25.4 | 84.7 | 71 | 77 | 101.6 | 123.9 | 30.2 | 36.5 |
| 55 | 146.1 | 87.3 | 25.4 | 87.8 | 74 | 79 | 104.8 | 130.2 | 30.2 | 36.5 |
| 58 | 165.1 | 95.3 | 25.4 | 98.9 | 79.4 | 85.7 | 115.9 | 146 | 30.2 | 36.5 |
| 60 | 165.1 | 95.3 | 25.4 | 98.9 | 79.4 | 85.7 | 115.9 | 146 | 30.2 | 36.5 |
| 63 | 1778 | 1112 | 25.4 | 121.2 | 85.8 | 101.6 | 131.8 | 1587 | 28.6 | 41.2 |
| 65 | 177.8 | 111.2 | 25.4 | 121.2 | 889 | 101.6 | 131.8 | 158.7 | 28.6 | 41.2 |
| 68 | 177.8 | 111.2 | 25.4 | 121.2 | 92.1 | 101.6 | 131.8 | 158.7 | 28.6 | 41.2 |
| 70 | 177.8 | 111.2 | 25.4 | 121.2 | 92.1 | 101.6 | 131.8 | 158.7 | 28.6 | 41.2 |
| 75 | 190.5 | 125.4 | 31.7 | 130.7 | 98.5 | 114.3 | 146.1 | 171.4 | 30.2 | 50.8 |
| 80 | 190.5 | 125.4 | 31.7 | 130.7 | 101.6 | 114.3 | 146.1 | 171.4 | 30.2 | 50.8 |
| 85 | 203.2 | 135 | 31.7 | 140.2 | 108 | 123.8 | 155.6 | 184.1 | 30.2 | 50.8 |
| 90 | 215.9 | 144.5 | 31.7 | 149.7 | 114.3 | 133.3 | 165.1 | 196.8 | 30.2 | 50.8 |
| 95 | 215.9 | 144.5 | 31.7 | 149.7 | 117.5 | 133.3 | 165.1 | 196.8 | 30.2 | 50.8 |
| 100 | 228.6 | 154 | 31.7 | 156.1 | 123.9 | 139.7 | 174.7 | 209.5 | 30.2 | 50.8 |
